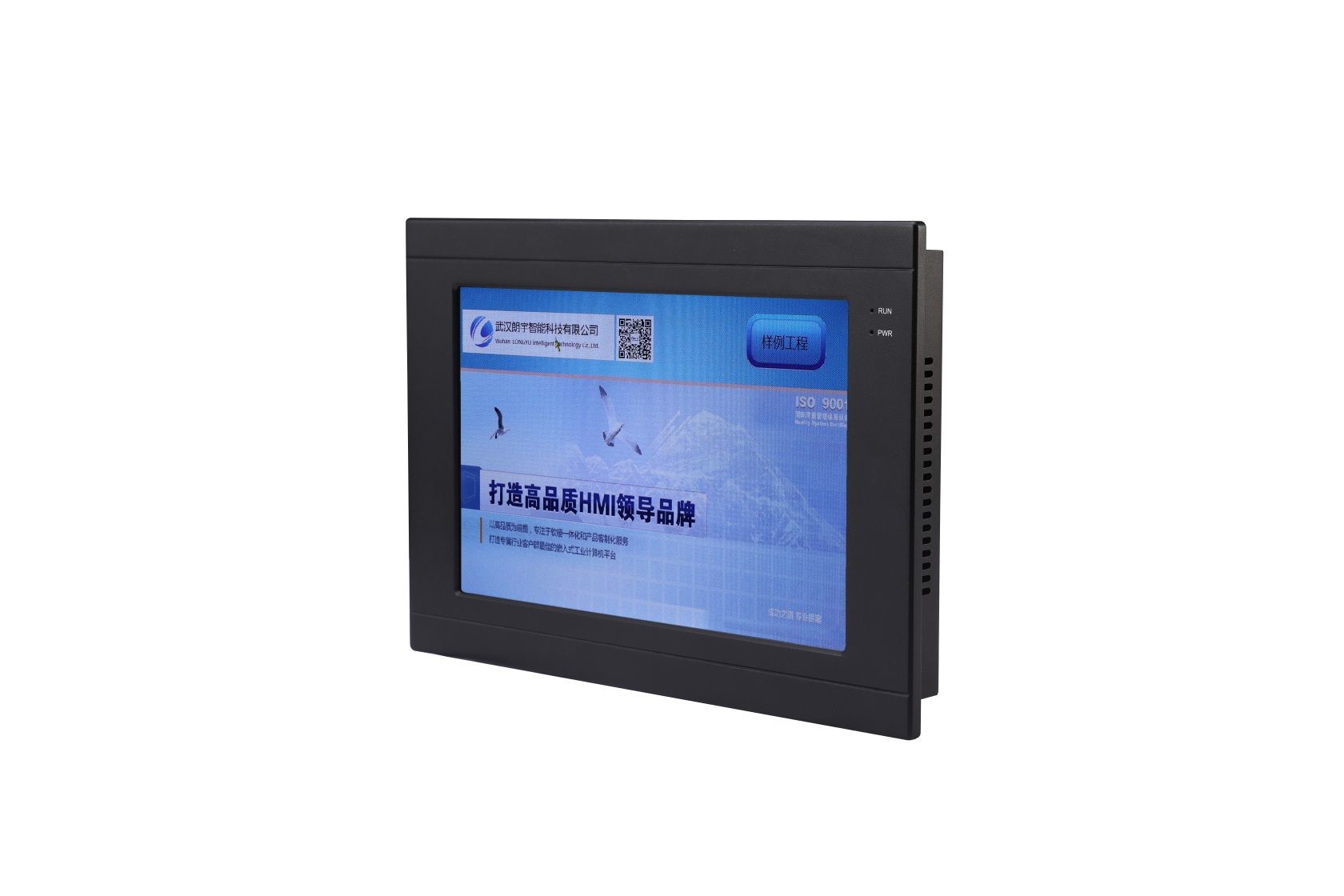

IP65 Industrial HMI Panels TFT LED Light Panel 12.1 Inch RS485

Product Categories

Shenzhen Huayao Hengsheng Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: IP65 Industrial HMI Panels TFT LED Light Panel 121 Inch RS485
Brand: LONGYU
Price: 1 USD

Brand Name : LONGYU

Model Number : HMIAT8120

Certification : CE RoHS

Place of Origin : China

MOQ : 1 pcs

Price : TBA

Payment Terms : T/T, Western Union，Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Work Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Product size : 12.1 Inch

Resolution ratio : 1024*768

Display brightness : 500cd/m2

Touch screen : Four wire resistive

Operational temperature : -30℃-70℃

Degree of protection : IP 65

Input voltage : 15V-36V

Product Size : W317mm×H247mm×D48.5mm

Contact Now

Product Description

Industrial 12" RS485 Human Machine Interface HMI IP65 LED Light Panel

Specifications:

Product Performance:

·LCD screen:	:	12.1-inch TFT LCD, LED backlight, color 65536 bits
·Resolution	:	1024*768
Display brightness	:	500cd/m2
·C P U	:	Cortex-A7 four core 1.2G
·Memory	:	1G DDRIII RAM
·Touch screen	:	Four wire resistive, click more than 1 million times
·Storage device	:	8G eMMC electronic disk
·SD card extension	:	Optional, Max scalability 16G
·Interface	:	1RS232,3RS485(1CAN for Selectable ),2LAN
·Extension interface	:	2*USB 2.0
·Real time clock	:	Available
·Buzzer	:	Available
·Operational temperature	:	-30℃ to +70℃
·Degree of protection	:	IP 65( operating surface)
·Input voltage	:	15V-36V Wide range input voltage
·Anti interference	:	Power frequency magnetic field interference level 5,Magnetic field strength 100A / M
·Case Material	:	Panel aviation aluminum material, surface treatment: acrylic polyurethane. Treatment method: Primer twice and topcoat three times, with a thickness of about 0.1 mm.
·Product Size	:	W317mm×H247mm×D48.5mm
·Opening size	:	W305mm×H235mm

Product Tags:

IP65 Industrial HMI Panels
