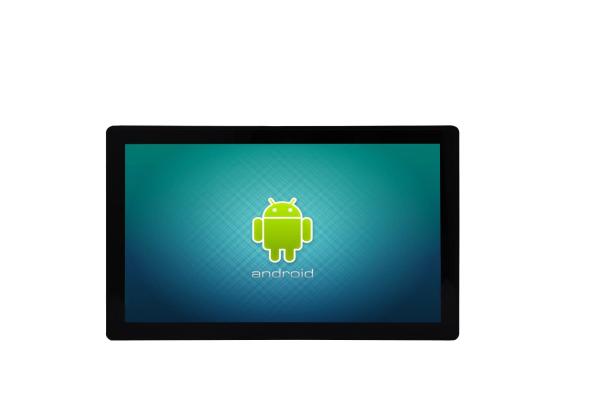

Industrial Tablet All In One PC Touchscreen IP65 Dustproof 21.5 Inch

Brand Name : LONGYU

Model Number : LYA215K20C-W

Certification : CE RoHS

Place of Origin : China

MOQ : 1 pcs

Price : TBA

Payment Terms : T/T, Western Union，Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Work Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Material : Plastic face frame, metal back cover

Resolution : 1280 * 800

Touch form : 4 Line Capactive touch

Operating System : Android11.0/Ubuntu18.04/Linux 4.19

CPU : RK3568 / Cortex A55 4 core main frequency at 2.0GHZ

Running memory : 2GB/4GB

EMMC : 16GB/32GB/64GB/128GB

View Angle : Full perspective

IP Grade : Industrial grade IP65 dustproof and water proof

Working Temperature : -10℃ ~ 60℃

Storage temperature : -20℃ ~ 70℃

Processor Type : RK3568

Contact Now

Rich interface 21.5 inch Industrial Tablet all in one pc

LYA215K20C is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Performance Detail

System

 CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

 Size 21.5 Inch
Resolving power 1920 * 1080
Touch form Capactive 10 touch
Luminance 300 cd/ m²(Select a 450cd / m² s)
Angle of view Full perspective

Material

 Material quality Plastic face frame, metal back cover
Way to stall Flat, outer, embedded
Dimension

533 * 324 * 47mm
IP protection grade Industrial grade IP65 dustproof and water proof (operating face)

Power

 Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12-30V Recommended value of 24V

Environmental Characteristics

 Working temperature -10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

2 RS232,2 RS232 / RS485 switch;

6-Road TTL serial port (reuse with serial port)
Audio interface 1-way MIC interface
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
4G interface The GPS function 4G module should be replaced
GPIO interface Expand the miniPCIE 4G module
GPIO 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
USB2.0 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)
Industrial Tablet All In One PC Touchscreen IP65 Dustproof 21.5 InchIndustrial Tablet All In One PC Touchscreen IP65 Dustproof 21.5 InchIndustrial Tablet All In One PC Touchscreen IP65 Dustproof 21.5 InchIndustrial Tablet All In One PC Touchscreen IP65 Dustproof 21.5 Inch
